Put simply, a dieline is the skeleton of every custom package. It is a digital, vector‑based map that tells die‑cutting machines where to slice, score, and seal. Because it is created in flat form, it also shows you—before a single sheet is printed—how every panel will align once your box pops into 3‑D shape.
“Think of your dieline as the GPS that guides your artwork safely through production.”
Why a Solid Dieline Makes or Breaks Your Packaging
Precision = Savings
You hate waste, and so do we. A laser‑accurate dieline keeps every cut, score, and glue tab exactly where it belongs. Because nothing shifts, your cartons slide through the die‑cutter in one pass—no extra trims, no emergency reprints, no budget shocks. That means more cash in your pocket for the next product launch.
Brand Consistency
Your logo, color blocks, and hazard icons must look identical on every SKU. A tight dieline fixes their coordinates like GPS pins, so you never find a barcode creeping onto a fold or a hero image sliced in half. The result? Shoppers spot your signature style instantly, trust grows, and repeat sales climb.
Regulatory Peace of Mind
From FDA font sizes to EU recycling marks, compliance space is non‑negotiable. A well‑built dieline fences off “safe zones” for mandatory text, letting you drop legal copy in once and forget the headaches. When inspectors review your boxes, they tick every box—no recalls, no fines.
Scalability
Tomorrow you may roll out a mini version or a holiday gift set. Because one master dieline scales perfectly, you don’t pay for new tooling. Swap the artwork, adjust panel lengths, and press “print.” Faster time‑to‑market means you beat competitors to the shelf and ride the first wave of demand.
Need a dieline that delivers on all four pillars? Pakoro’s engineers can blueprint one for you today—reach out through our quick form on the contact page and keep every project on track.
Dieline Design Basics You Must Nail

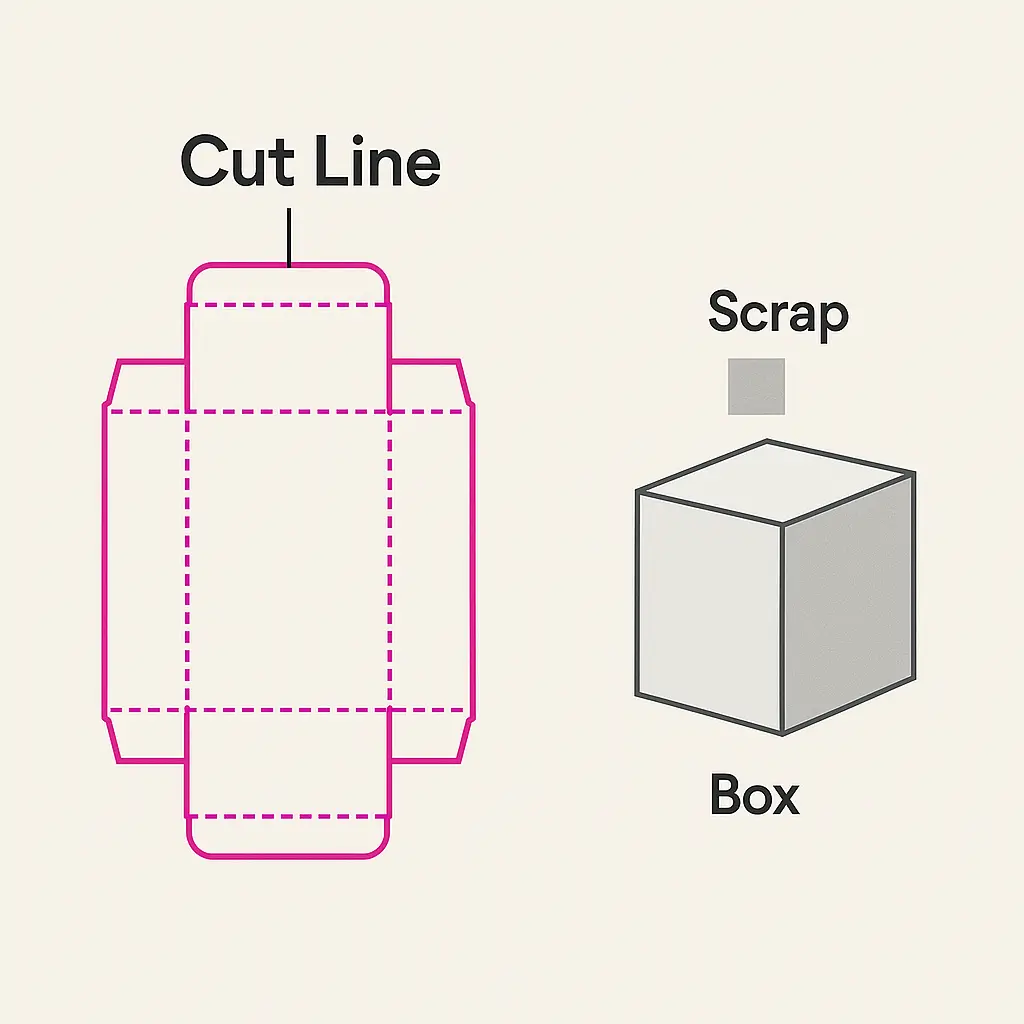

1. Cut (Trim) Line — The Shape Setter
This bold outline is the exact silhouette of your finished box or label. When your die‑cutter follows the cut line, there is no room for guesswork. Keep it at 0.25 pt, set it to 100 % magenta, and lock the layer. That way, operators see at a glance where stock ends and scrap begins. Get this wrong, and you pay twice: once for wasted material and again for a rush reprint.
2. Bleed Line — Your Safety Net for Ink
Add at least 3 mm (⅛ in) of bleed beyond the cut line, and color floods every edge—no awkward white streaks. Bleed is especially crucial for dark backgrounds, photo wraps, or rich Pantone fills. Without it, even a half‑millimeter sheet drift in the press can ruin an entire run. Remember: inks can’t stretch, but you can always trim away excess.
3. Fold (Score) Line — The Perfect Crease Map
Fold lines appear as evenly spaced dashed strokes, usually 0.5 pt and set to 100 % cyan. They tell machines—and your assembly team—exactly where paper should bend, not crack. Align graphics so text never straddles a score. Test by printing a paper dummy, folding every panel, and checking that key visuals stay intact. Your customer notices when creases line up flawlessly.
4. Perforation Line — Built‑In User Interaction
Perf lines invite action: tear‑off coupons, easy‑open strips, vent holes for hot food. Mark them with a dot‑dash pattern or a specialty color such as 100 % yellow. Keep perforations clear of critical graphics, and verify hole size against product weight or steam release needs. The right perforation boosts usability and elevates your brand’s unboxing moment.
5. Glue Tab — The Invisible Backbone
This narrow flap keeps walls locked tight, so give it the respect it deserves. Flag it with a solid 50 % black tint and label it “Glue Area — No Art.” Doing so ensures your gorgeous design doesn’t hide under adhesive or lose legibility. Also add a glue exclusion zone: 2–3 mm inside the tab where no varnish, foil, or lamination should touch. Strong bonds mean fewer returns and happier customers.
The Step‑by‑Step Workflow in Adobe Illustrator
1. Switch to CMYK at the Start
Open a blank artboard, then follow File → Document Color Mode → CMYK. Doing this first prevents ugly color shifts later. Remember, every commercial press speaks CMYK, not RGB.
2. Set Up a Logical Layer Stack
Create three layers before you draw a single line:
| Layer | What Goes Here | Why It Matters |
|---|---|---|
| Dieline | Cut, fold, perforation, glue marks | Keeps production lines separate from art |
| Artwork | Logos, photos, patterns | Lets you edit visuals without nudging the dieline |
| Text & Icons | Legal copy, barcodes, symbols | Keeps type crisp, ensures readability checks |
Lock the Dieline layer once you finish it, so accidental clicks never move critical strokes.
3. Add Spot Colors for Brand Consistency
Navigate to Window → Swatch Libraries → Color Books → Pantone+ Solid Coated. Pick your brand’s exact spot color and hit Add to Swatches. Using Pantone shades ensures that your deep red or luxury gold looks identical across every SKU.
4. Outline Strokes for Printer Clarity
Select all dieline paths, then go Object → Path → Outline Stroke. This converts thin “hairlines” into solid shapes. Your die‑maker will read them as precise edges, not suggestions.
5. Name Every Layer Clearly
Rename layers to Dieline_Cut, Dieline_Fold, Art_Main, Text_Legal, and so on. Clear names speed up pre‑press checks and avoid the dreaded “Which line is the perforation?” phone call.
6. Run a Quick Pre‑Flight Checklist
- Bleed Confirmed? Extend artwork 3 mm past the cut line.
- Safe Zone Checked? Keep text 3–5 mm inside folds.
- Fonts Outlined? Expand type or package the file to dodge missing‑font errors.
7. Save as PDF/X‑4 for Press‑Ready Reliability
Choose File → Save As → PDF, then click the PDF/X‑4 preset. This standard embeds fonts, locks colors, and preserves vectors. It also keeps transparency intact for fancy varnish layers.
8. Skip Photoshop for Dielines—Here’s Why
Photoshop works in pixels. Pixels blur when scaled, and rulers won’t snap to perfect fractions of a millimeter. Illustrator’s vectors stay razor‑sharp, even if you upscale to a billboard.
Pro Tip: Need a sanity check? Print a low‑cost paper mock‑up, cut along the dieline, and fold it. If panels align and glue tabs meet, you’re ready for mass production.
Ready to Hand Off a Bullet‑Proof File?
Upload your Illustrator PDF to Pakoro’s pre‑press team through our fast form on the contact page. We’ll review every layer, flag any issues, and send it to press with full confidence—so your packaging looks perfect on day one.
Common Dieline Types and When to Use Them
| Dieline Type | Typical Product | Key Considerations |
|---|---|---|
| Box Dieline | Retail cartons, subscription boxes | Needs glue tab and dust flaps |
| Bag Dieline | Shopping bags, pouches | Add handle reinforcement marks |
| Label Dieline | Bottles, jars | Include bleed on all sides and gap for the seam |
Five Pro Tips to Keep Your Printer Happy
- Stay Vector – Every stroke in Illustrator must be a path, not a raster image.
- Use 0.25 pt Lines for Cut, 0.5 pt for Fold – Printers spot them instantly.
- Lock and Hide the dieline layer before you place artwork.
- Run a Digital Mock‑up – Print on plain paper, fold, and test fit.
- Communicate Early – Send your dieline to the printer or to Pakoro for pre‑press review before you commit press time.
The Benefits You’ll Feel Immediately
- Fewer Production Errors – Workers have a single source of truth.
- Faster Turnaround – Clear dielines speed up die‑cut tool creation.
- Lower Waste – Correct bleed and trim zones reduce material scrap.
- Stronger Shelf Impact – Perfect alignment means graphics pop exactly as planned.
Ready to Turn Your Concept into a Flawless Package?
You now know that a packaging dieline is the silent hero behind every beautiful box, bag, or label. When accuracy, cost control, and brand impact matter, you can’t afford guesswork.
Let Pakoro’s packaging engineers draft or refine your dieline today. Visit pakoro.com for inspiration, then reach our team through the quick form on our Contact page. We’ll answer within one business day, guide you through materials, and deliver a production‑ready dieline that prints right the very first time.
Because great packaging starts long before the press rolls— it starts with the perfect dieline.
